Omschrijving

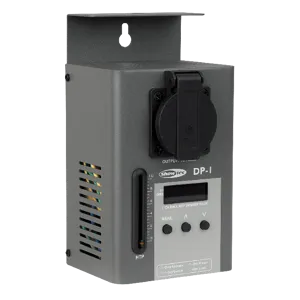

The Showtec Single DP-1 is a compact, single-channel DMX dimmer and switch pack designed for controlling individual lighting fixtures. With a 10A maximum channel output, it can handle a wide range of conventional dimmable fixtures, making it a versatile tool for any lighting setup.
The unit operates on 230V AC and features 512-channel DMX addressing, allowing it to integrate seamlessly into any DMX-512 control setup. The built-in 50mm dimming slider enables manual control without a DMX controller, while dimming preset and dimming limit functions provide additional flexibility.
Mounting options include wall and truss installation, making the DP-1 adaptable to both permanent installations and touring setups. The power failure memory function automatically restores the last active settings after a power interruption, ensuring reliable performance.
KEY FEATURES
- 1-channel DMX dimmer/switch pack
- 10A maximum output (capacitive)
- 3-5A inductive load rating
- 512-channel DMX addressing

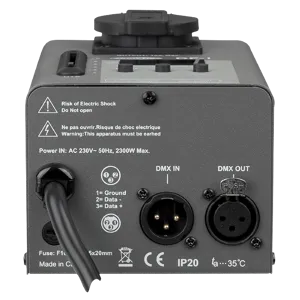

- 3-pin DMX IN/OUT
- 50mm manual dimming slider
- Dimming preset and limit functions
- Wall and truss mountable
- Power failure memory
- Dimensions: 100 x 80 x 195mm
- Weight: 1.4 kg
The unit operates on 230V AC and features 512-channel DMX addressing, allowing it to integrate seamlessly into any DMX-512 control setup. The built-in 50mm dimming slider enables manual control without a DMX controller, while dimming preset and dimming limit functions provide additional flexibility.
Mounting options include wall and truss installation, making the DP-1 adaptable to both permanent installations and touring setups. The power failure memory function automatically restores the last active settings after a power interruption, ensuring reliable performance.
KEY FEATURES
- 1-channel DMX dimmer/switch pack
- 10A maximum output (capacitive)
- 3-5A inductive load rating
- 512-channel DMX addressing
- 3-pin DMX IN/OUT
- 50mm manual dimming slider
- Dimming preset and limit functions
- Wall and truss mountable
- Power failure memory
- Dimensions: 100 x 80 x 195mm
- Weight: 1.4 kg
Specifications
Ingangsspanning: 230 V AC, 50 Hz
Output: 10 A Schuko
Aansluitingen: 3-polige DMX-signaalaansluiting IN/OUT
50mm-dimschuifregelaar
DMX-kanalen: 1 kanaal
Behuizing: Metaal en vlamvertragend plastic
Kleur: Grijs
Zekering: F10L/250V
Afmetingen: 100 x 80 x 195 mm (LxBxH)
Gewicht: 1.4 kg
Mechanical Specifications
- Weight
- 1.4 Kg
- Height
- 8 cm
- Length
- 10 cm
- Width
- 19.5 cm
Control
- Minimal DMX chennels
- 1 ch
- Max DMX channels
- 1 ch
